Custom Cut Clear Tempered Glass
Made to Your Size, Shape & Processing Requirements
DeShen Glass manufactures custom cut clear tempered glass for architectural, commercial, interior, façade and specialty glass projects.
Glass can be produced according to your drawings, dimensions and processing requirements, including custom shapes, polished edges, drilled holes, notches, cutouts and other fabrication before tempering.
Whether you require standard rectangular panels or complex project-specific glass, our team can manufacture clear tempered glass to your required specifications.
Custom Clear Tempered Glass at a Glance
Glass Type: Clear Tempered Safety Glass Customization: Cut to size and drawing Thickness: Available in multiple standard architectural thicknesses Shape: Rectangle, square and custom shapes Edge Processing: Polished, ground and other project-required finishes Fabrication: Holes, notches, cutouts and CNC processing Heat Treatment: Fully tempered Optional Processing: Heat soak testing, printing and additional fabrication where required Order Type: Project-based and custom manufacturing Applications: Doors, partitions, railings, façades, windows, shower enclosures and architectural glazing
Need a specific configuration? Send us your glass schedule, CAD drawing or dimensions for review.
What Is Custom Cut Clear Tempered Glass?
Custom cut clear tempered glass is clear float glass that is cut and processed to the required final dimensions before undergoing thermal tempering.
During tempering, the glass is heated and rapidly cooled to create compressive stress on the surface. This increases its mechanical strength and changes its breakage behavior compared with ordinary annealed glass.
Because tempered glass cannot normally be cut, drilled or significantly reworked after tempering, all required fabrication must be completed before the tempering process.
This makes accurate drawings, dimensions and processing specifications especially important for custom tempered glass orders.
Made to Your Exact Specifications
Every project has different glass requirements.
DeShen Glass can manufacture custom clear tempered glass according to:
Required width and height Glass thickness Custom shapes Hole diameter and position Notch dimensions Hardware cutouts Corner treatment Edge finish Drilling requirements Printed markings or patterns Heat soak testing requirements Applicable project standards Packing and delivery requirements
For complex processed glass, we recommend providing a drawing showing all dimensions and machining positions.
Available Thicknesses
Custom clear tempered glass can be manufactured in commonly specified architectural thicknesses, depending on panel size, application and project requirements.
Typical thickness options include:
4 mm 5 mm 6 mm 8 mm 10 mm 12 mm 15 mm 19 mm
Other configurations may be available depending on the project.
The appropriate thickness should be selected based on panel dimensions, support conditions, loads, safety requirements and the intended application.
Custom Size Tempered Glass
Instead of limiting projects to standard stock sizes, DeShen Glass can manufacture glass panels according to project-specific dimensions.
Custom sizing is suitable for:
Architectural doors Office partitions Storefront glazing Glass railings Shower enclosures Windows Interior glass walls Commercial glazing Furniture glass Custom fabricated assemblies
For large or unusual dimensions, please send the required panel sizes so our technical team can review production feasibility.
Custom Shapes
Clear tempered glass does not need to be limited to standard rectangular panels.
Depending on the drawing and fabrication requirements, custom processing may include:
Rectangular glass Square glass Trapezoid glass Triangle glass Polygon glass Radius corners Irregular shapes Custom CNC profiles
Complex shapes should be confirmed before production to ensure adequate edge distances, radius requirements and tempering feasibility.

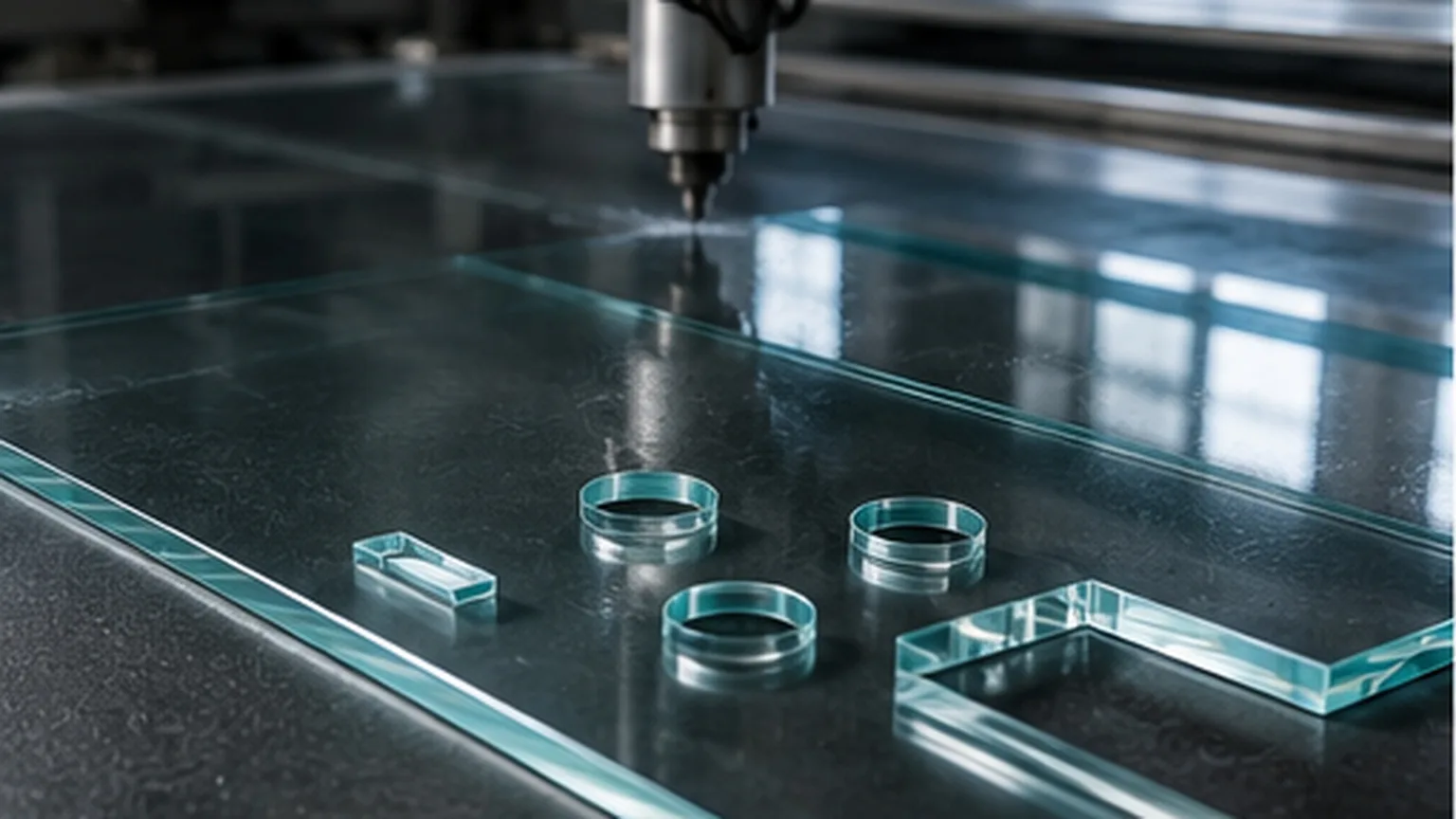

Holes, Notches & Cutouts
Custom clear tempered glass can be processed with installation-ready machining before tempering.
Drilled Holes
Holes can be prepared for:
Handles Hinges Standoffs Bolts Connectors Railing hardware Door fittings Structural fittings
Hole size and hole-to-edge distance must be reviewed according to glass thickness and processing requirements.
Notches
Custom notches can be manufactured for:
Door hardware Partition fittings Balustrade systems Railing clamps Architectural fixing systems Custom installation conditions
Custom Cutouts
CNC cutouts can be produced according to technical drawings for hardware, mounting systems and architectural details.
Because processing is completed before tempering, all cutout dimensions should be confirmed before production.
This is why tempered glass is widely used in safety glazing applications.
High Transparency
Clear glass provides good visible light transmission and a neutral appearance suitable for a wide range of architectural and interior applications.
For projects requiring even greater clarity and reduced green tint, consider Ultra Clear Tempered Glass.
Custom Fabrication
Glass can be cut, drilled, shaped and edge-processed before tempering so that panels arrive prepared for installation.
Wide Application Range
Custom clear tempered glass can be used across residential, commercial and architectural projects.
Applications
Custom cut clear tempered glass is commonly used for:
Glass Doors
Suitable for frameless doors, commercial entrances, office doors and interior glass door systems.
Explore Application: Glass Doors
Glass Partitions
Used in offices, meeting rooms, hotels, retail environments and commercial interiors.
Explore Application: Glass Partitions
Glass Railings & Balustrades
Custom holes, notches and edge processing can be prepared for railing hardware and fixing systems.
Depending on the structural and safety requirements, laminated safety glass may also be required.
Explore Application: Railing Glass
Shower Doors & Enclosures
Clear tempered glass can be custom processed with hinge cutouts, handle holes and polished exposed edges.
Explore Application: Shower Door Glass
Storefront & Commercial Glazing
Suitable for retail entrances, interior glazing, doors and architectural display areas.
Windows & Architectural Glazing
Tempered glass may be specified where improved safety or thermal stress resistance is required.
Explore Application: Window Glass
Custom Processing Before Tempering
A typical custom glass production sequence includes:
1. Glass Cutting
Clear float glass is cut according to the confirmed production dimensions.
2. Edge Processing
Required edge finishing and corner treatment are completed.
3. CNC Fabrication
Holes, notches, cutouts and custom shapes are processed according to the approved drawing.
4. Cleaning & Inspection
Glass is cleaned and inspected before heat treatment.
5. Tempering
The finished panel is thermally tempered according to the required production process.
6. Final Quality Inspection
Finished glass is checked for dimensions, processing positions, surface quality and other specified requirements.
7. Packing
Glass is packed according to panel size, processing complexity and export requirements.
Heat Soak Testing Option
For projects requiring additional risk control against spontaneous breakage, heat soak testing may be specified.
Heat soak testing is typically used for demanding architectural applications where the consequences of spontaneous glass breakage need to be reduced.
If your project specification requires HST glass, please identify this requirement when requesting a quotation.
Related Product: Heat Soaked Clear Tempered Glass
Clear Tempered Glass vs. Ultra Clear Tempered Glass
Standard clear tempered glass provides good transparency and is suitable for most architectural applications.
Ultra clear tempered glass is manufactured from low-iron base glass and provides:
Higher visual clarity Reduced green tint Better color neutrality Improved appearance in exposed glass edges Greater suitability for premium architectural projects
For applications where visual transparency is a priority, consider:
Ultra Clear Tempered Glass
Clear Tempered Glass vs. Laminated Glass
Tempered and laminated glass serve different performance requirements.
Tempered glass provides improved mechanical strength and safety breakage behavior.
Laminated glass uses an interlayer to help retain glass fragments after breakage and may provide additional safety, structural, acoustic or security performance.
Some applications may require:
Tempered Laminated Glass
instead of monolithic tempered glass.
Our team can review your project configuration if you are unsure which glass construction is more suitable.
Quality Control
For custom fabricated tempered glass, quality control should cover both the glass itself and the accuracy of the processing.
Typical inspection items include:
Glass dimensions Thickness Hole diameter Hole position Notch dimensions Cutout position Edge finish Corner quality Surface appearance Processing accuracy Tempering quality Packing condition
For project orders, inspection requirements can be reviewed against the confirmed drawings and technical specifications.
Project-Based Manufacturing
Custom tempered glass is often purchased as part of a complete architectural glass package rather than as an isolated standard panel.
To help us prepare an accurate quotation, send:
Glass dimensions Thickness Quantity Drawings Hole and notch details Edge processing requirements Required standards Heat soak test requirements Project location Delivery destination Required delivery schedule
The more complete the specification, the faster the technical review and quotation process.
Packing for Export
Processed glass requires careful handling during transportation, especially when panels include holes, cutouts, exposed edges or large dimensions.
Packing can be prepared according to:
Glass size Weight Processing complexity Project sequence Shipping method Destination requirements
Project-specific marking and packing requirements can also be reviewed before production.
Related Products Clear Tempered Glass
Standard clear tempered safety glass for architectural and commercial glazing.
Ultra Clear Tempered Glass
Low-iron tempered glass for applications requiring higher transparency and reduced green tint.
Heat Soaked Tempered Glass
Tempered glass with an additional heat soak testing process for demanding architectural projects.
Tempered Laminated Glass
Combines tempered glass with a laminated construction for enhanced post-breakage retention and structural performance.
SGP Laminated Glass
Structural laminated glass for projects requiring higher interlayer rigidity and advanced safety performance.
